NETWORKING DEVICES

1. NIC (Network Interface Card)

A NIC is a hardware component installed in a computer that allows it to connect to a network. It acts as the intermediary between the computer and the network medium (cables or Wi-Fi).

• MAC Address: Every NIC has a unique, permanent 48-bit serial number called a MAC address, used for identification on the network.

• Types: There are wired NICs (using Ethernet cables) and wireless NICs (using radio frequencies/Wi-Fi).

• Function: It converts the computer's digital data into electrical or optical signals for transmission and vice versa.

2. Hub

A Hub is a basic networking device used to connect multiple devices in a local network segment.

• Layer 1 Device: It operates at the Physical Layer (Layer 1) of the OSI model.

• Broadcasting: When a hub receives data, it "broadcasts" it by sending the same signal to all connected ports, regardless of the intended destination.

• Inefficiency: Because it cannot manage traffic, it often leads to network congestion and data collisions.

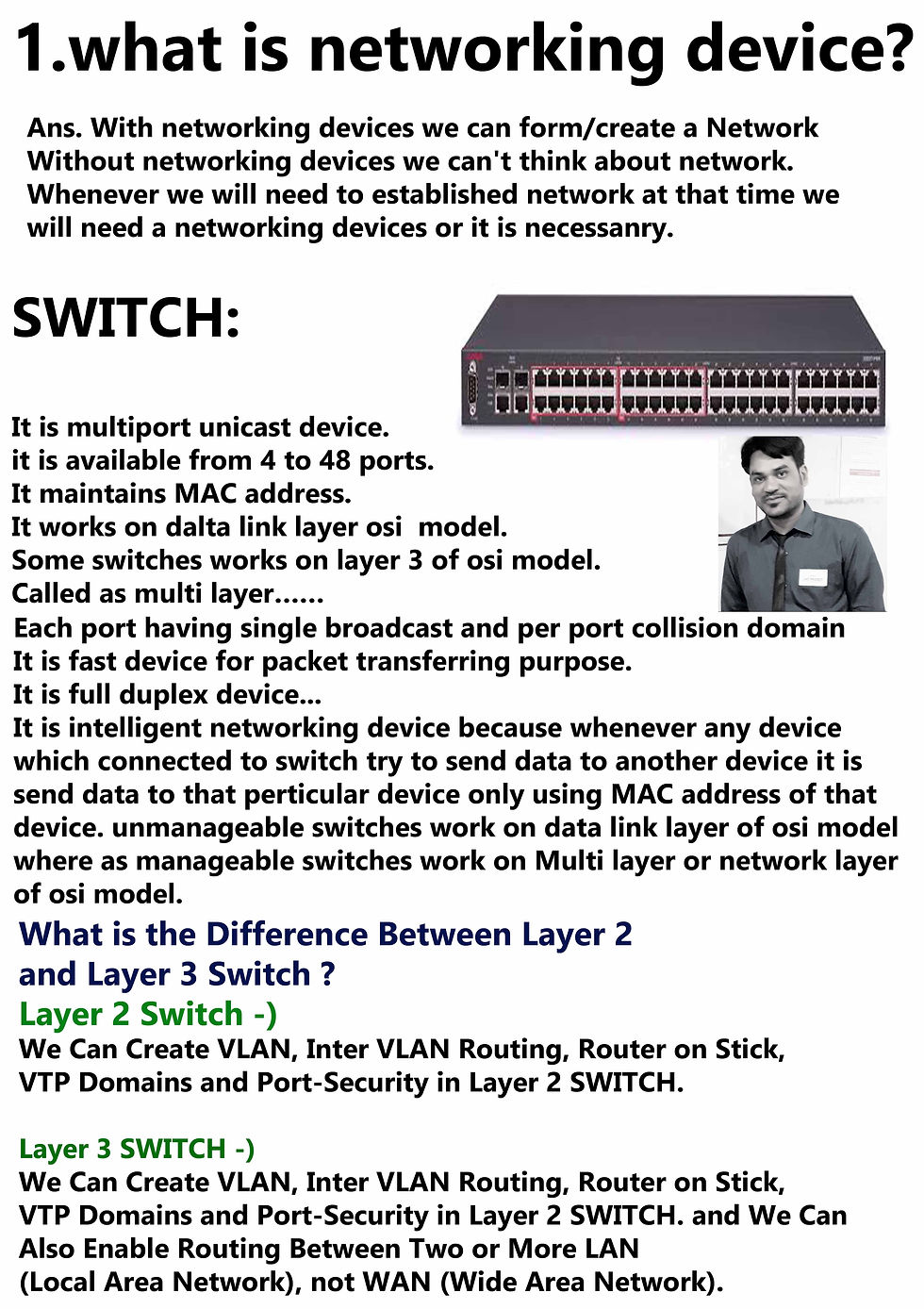

3. Switch

A Switch is a more "intelligent" version of a hub.

• Layer 2 Device: It operates at the Data Link Layer (Layer 2) and makes decisions based on MAC addresses.

• Unicasting: Unlike a hub, a switch learns which device is connected to which port and sends data only to the specific intended recipient.

• Full Duplex: It allows devices to send and receive data simultaneously, which increases network speed.

4. Repeater

A Repeater is used to regenerate or replicate a signal to extend the distance it can travel.

• Signal Boosting: As electrical signals travel through cables, they lose strength (attenuation). A repeater receives a weak signal, cleans it, and retransmits it at its original strength.

• Modern Use: Today, dedicated repeaters are less common because many hubs, switches, and routers have "active" repeating functions built-in.

5. Router

A Router connects two or more different networks (e.g., your home LAN and the Internet).

• Layer 3 Device: It operates at the Network Layer (Layer 3) using IP addresses to route data.

• Traffic Management: It maintains a "routing table" to determine the best path for data packets to reach their destination.

• Security: Routers often include firewall features to filter unauthorized traffic.

6. Modem

The term Modem stands for Modulator-Demodulator.

• Signal Conversion: It converts digital signals from your computer into analog signals that can travel over telephone or cable lines, and vice versa.

• Internet Access: While a router connects your devices together, the modem is what actually provides the link to your Internet Service Provider (ISP).

7. Bridge

A Bridge is used to connect and filter traffic between two separate network segments.

• Segmentation: It helps reduce traffic congestion by dividing a large network into smaller, more manageable sections.

• Filtering: It checks the destination MAC address to decide whether to pass a packet to the next segment or keep it within the local one.

8. Gateway

A Gateway is a "translator" that connects two networks using completely different protocols or architectures.

• Protocol Conversion: For example, it can connect a corporate network using one communication standard to the internet which uses another.

• Entry/Exit Point: It acts as the primary gatekeeper for data leaving or entering a network.

• Combined Devices: In many homes, the "router" provided by an ISP is actually a Gateway because it combines the functions of a modem, router, and switch into one box.
